Blog Dico Klaassen, SCRUM Master and Software Developer
There are several ways to design a cloud-based data analytics solution. Today, I will be sharing a best practice that we have implemented recently for a broadcasting / media organisation. This company wanted to benchmark their current architecture with the solution that Crystalloids proposes as a best practise, keeping their business and requirements in mind. In this article, I will share a best practice that can be used as the foundation of your data solution. In addition, it is a solution that only requires Google Cloud components.
The organisation was already loading a number of social media data sources into a Datahub in GCP to deliver insights to the publishers for analysis of customer reach of their shows and other formats and also for growth hacking purposes. They had a working solution in place, but wanted to bring their architectural setup to the next level. That is why they challenged Crystalloids to design and build a future proof solution.
They were looking for a solution that is:
Easy to use by both developers and analysts
Easy to monitor
Make sure that it is easy to detect issues, before they are even noticed by the data users.
Easy to maintain
Whenever new information needs to be added or existing information needs to be changed, while maintaining the availability of the data to its users.
Easy to expand
Whenever you want to add new data sources, the same solution could be applied for the new data source.
Easy to reload
Whenever any step has failed, it should be easy to redo that step individually, without having any dependency on the rest of the process.
Easy to secure
Groups of people should only have access to data that is pre-defined for them to use.

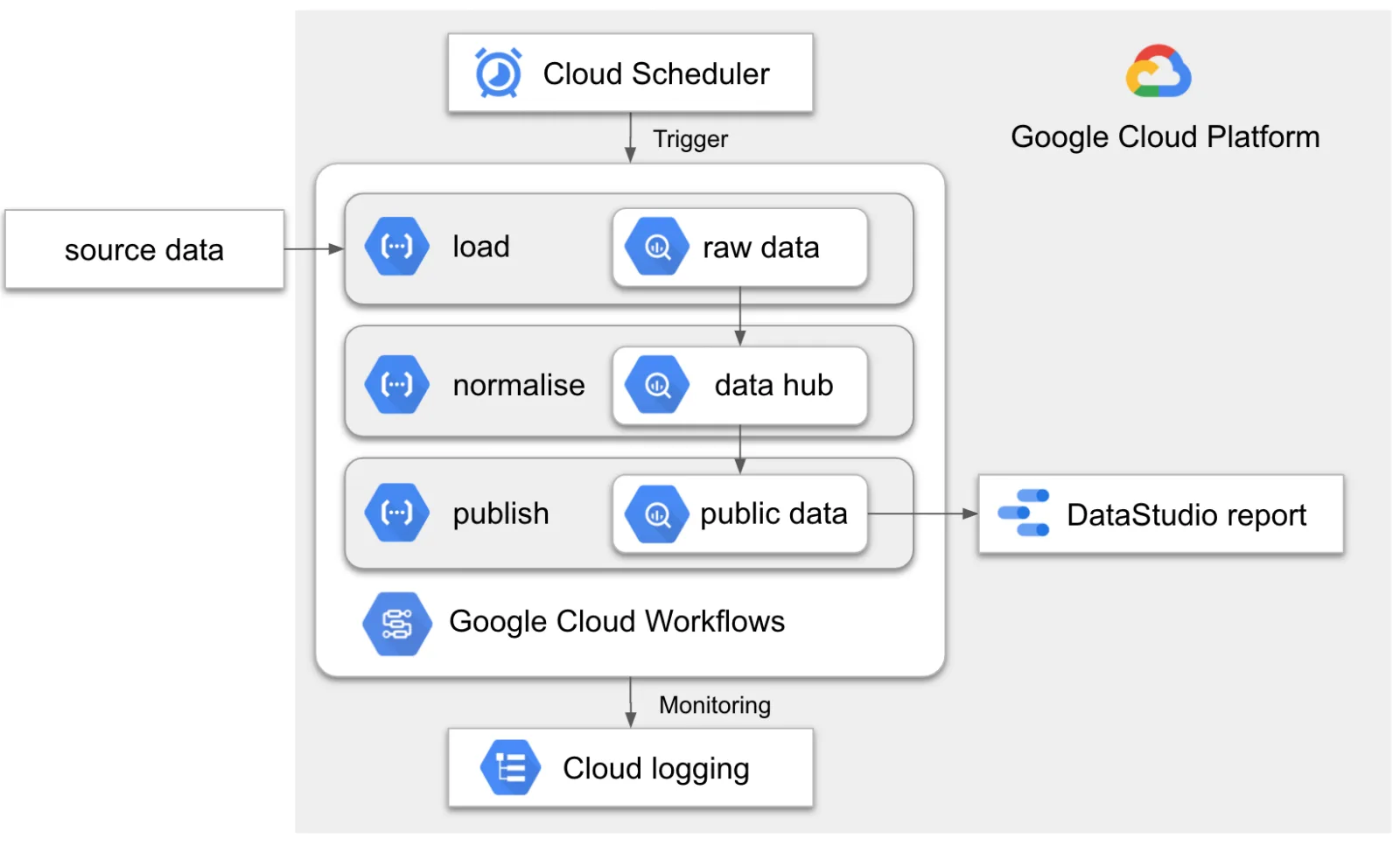

Instead of loading data from a source into BigQuery and directly build reports on these BigQuery tables, the best practice is to divide this process into three steps:
This step only takes data from the source and writes it to BigQuery in its raw form. No transformations are made on the data, to make sure that you are looking at the same data as was received from the source. It can be useful to not only write it to BigQuery, but also to a file in Google Cloud Storage. For example, when you receive data in JSON format, this can be stored in its purest form.
This step takes the raw data and makes the transformations that are needed to be able to use the data. Make sure that:
all data is deduplicated: no transformed table contains two identical rows.
all data is actual: only one version of the data is present, the most recent one,
all data is stored at the lowest granularity (no aggregation of raw data, only storing its lowest level)
Once the data is normalised and all entities are stored in tables, you are ready to start gathering the data that you want to use in your reports or for specific analyses. This should happen in a separate publish step. Here you also have the possibility to combine multiple entities and/or sources.
To orchestrate these steps and make sure that the next step will only be executed when the previous is finished, I can recommend to use Google Workflows. Within this workflow, each step in the solution is handled by a Cloud function.
For this case it was required to load the data from the source on a daily basis. Therefore the first step is triggered by Cloud scheduler, since it allows to trigger the process every day at the same time.
By using this setup, in each individual step, monitoring can be applied. Operational engineers can act on this to help manage the production lifecycle.
The solution has a pay-per-use pricing model, making sure there are no unnecessary costs. And since this process runs serverless, there is no configuration involved.
If you would like to learn more about this use case or if you need assistance in your data product, please contact us.
